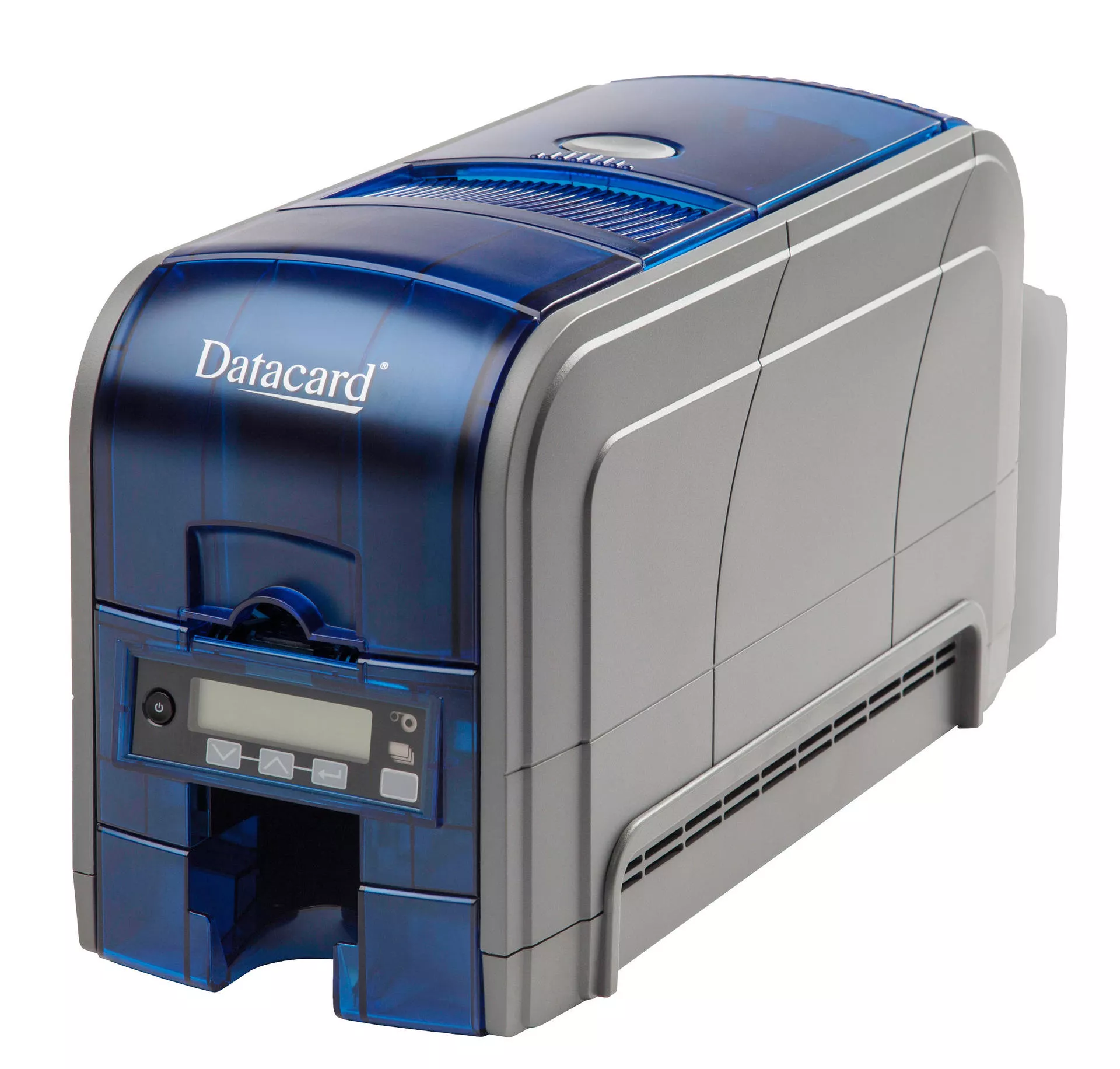

DATACARD SD160 ID CARD PRINTER (SINGLE-SIDED) [P-DC-SD160]

Print Quality

Prints crisp, high-quality full-colour, or monochrome cards plus additional inline encoding. The colours you see on the screen will be the colours you see on the card.

Reliability

The SD160 is used by businesses and organisations of all sizes. Datacard provides a standard 30-month warranty cover on this printer, alongside a 30-month warranty cover on replacement print heads.

Ease of Use

Like other models within the SD series range, the SD160 machine is no different. Following the step-by-step on-screen instructions mean you will be ready to print in under 15 minutes.

Ease of Setup

One of the key USP's to all Datacard printers is the smooth operation and setup of all new machines. The Intuitive icons guide you through the soft-touch control panel and LCD screen.

Security

Every business or organisation that is printing ID cards should look at adding a level of visual security to each card to lower the risk of cards being duplicated.
The SD160 card printer includes a UV ink option meaning an invisible layer of security is added to each card you print. This additional layer can only be seen under black lights so that any cloned cards could easily be identified.
Please note that you can add more layers of security to each card by printing logos and graphics to the cards.

Encoding

With the SD160, there is the option to add on Magnetic stripe encoding or Contactless / MIFARE Encoder upgrade.
Other options include:
ISO 7811 three-track option (high- and low-coercivity).
JIS Type II single-track option.
Support for standard and custom data formats.

Printer Type

The SD160 is an entry-level direct-to-card (DTC) ID card printer.
In less technical terms, this means the print from the YMCKO colour ribbon is transferred directly onto the card through heat from the print head.
Like all SD printers from Datacard, the SD160 model prints at the standard 300dpi
Please note this printer covers edge-to-edge, meaning a small white border will be visible around the edges of the card.

Card Types

Like all SD printers, the SD160 ID card printer prints CR80 (credit card size) cards only.

Print Volume

The SD160 is more suited to those with a lower print volume requirement or those who prefer to print in a single batch.
Based on a regular office working week of 35 hours you can print, 5,250 full-colour single-sided cards and 17,500 monochromes (black & white) single-sided cards.

Print Speed

When printing cards, the process needs to be as efficient and as easy as possible, and with the assistance of the 100 card input hopper on the Datacard SD160 users can merely pre-load the cards and let the printer do its work.
In just one hour the SD160 can print 150 full-colour single-sided cards and up to 500, single-sided black and white monochrome cards.

Connectivity

The SD160 printer comes complete with USB connectivity, and this means that one desktop computer can operate the machine.
If you require multiple network access through an Ethernet connection, then we advise on taking a closer look at the Datacard SD260 series ID card printer, as this will fulfil your requirements.

Operating Systems

Standard USB/Ethernet ports and the browser-based Printer Manager helps you integrate SD Series printers into third-party applications as well as existing systems.

Size

The SD160 is a small and compact machine which can comfortably fit onto any workspace at ease. The exact dimensions of this printer are length 15.4 inches, width 6.9 inches, and height 8.8 inches (39.1 cm x 17.5 cm x 22.4 cm).

Appearance

The SD160 has distinctive blue colour panels that stand out from other similar models in the market. The LCD screen also gives it a more modern look and feel.

Printer Specification

To see printer specification in more detail, please click here.
